A reliable seal where wire meets process.

Moving Wire Seals are engineered elastomer seals for moving wire entering liquid process baths and sealed chemical treatment tubes.

The Industrial Baby Nipple® — designed for industrial processes.

Illustrative cross-section of an applicator bath with a thick-wall MWS seal and moving wire
MWS installed at the bath entryIllustrative application
Seal the entry. Keep wire moving.
What MWS does

A purpose-built seal for continuous wire processes.

An MWS unit fits into an applicator or process tube so a moving wire can pass through the boundary into a liquid bath. The seal is supplied without a tip opening, so the end user can make the opening suited to the wire and process.

Moving wireLiquid process bathsPTFE dispersionChemical treatment

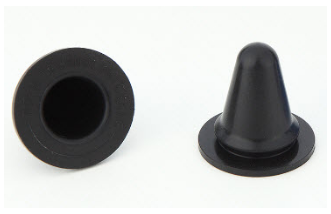

MWS-003 elastomer seal shown from three angles
MWS-003 EPDM seal, shown from three angles.
01 / SEAL

Designed for process entry

Fits at the bottom of an applicator bath or at an end of a treatment tube.

02 / SELECT

Choose for the application

Available material options support different temperature and chemical environments.

03 / INTEGRATE

Adapt the opening

The tip is supplied closed so the user can create a wire opening for the intended setup.

Product family

Three styles for different wire setups.

Choose the Standard or JRS series for your wire layout, or consider the flat MWS option for small-wire applications. Contact us to confirm fit and availability.

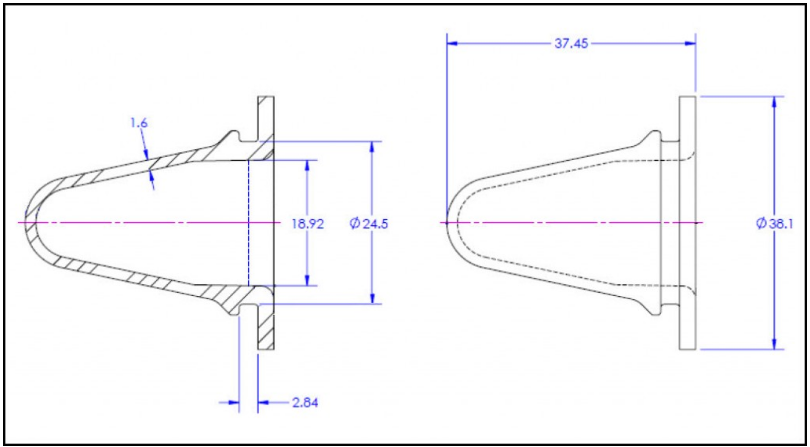

MWS standard series reference dimensional drawing
Standard series · MWS-004

Standard MWS

Standard-size seal design for moving wire applications. The MWS-004 EPDM configuration is the current online product listing.

1.0 in center spacingEPDM · 35ABlack
View Standard details

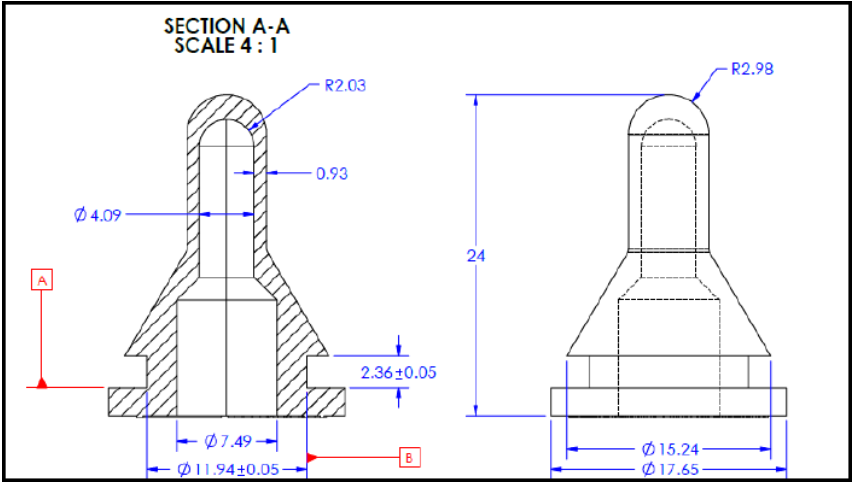

JRS series reference dimensional drawing
JRS · Just Really Small

JRS Series

Compact MWS geometry for smaller-diameter wire layouts, with 0.5-inch centers rather than the standard 1.0-inch spacing.

0.5 in center spacingSmall-diameter wireQuote availability
View JRS details
NPZ-002 flat Moving Wire Seal dimensional drawing
NPL series · Flat MWS

Flat Moving Wire Seal

Flat-profile seal option for small-wire applications. Available in two material configurations.

NPZ-002 · Black EPDM · 35A–40ANPL-001 · Neoprene · 40A
View Flat MWS details
In the process

A small component in a larger coating line.

MWS seals the wire entry at an applicator bath. The broader continuous-coating line may include wetting, primer, drying, baking and sintering stages.

  • Supports wire entry into an applicator bath containing liquid dispersion.
  • Can be used at both ends of a heated chemical treatment tube.
  • For low-viscosity, water-based PTFE dispersion, a free-meniscus coating approach may be more appropriate than a metering die.
See applications & diagrams

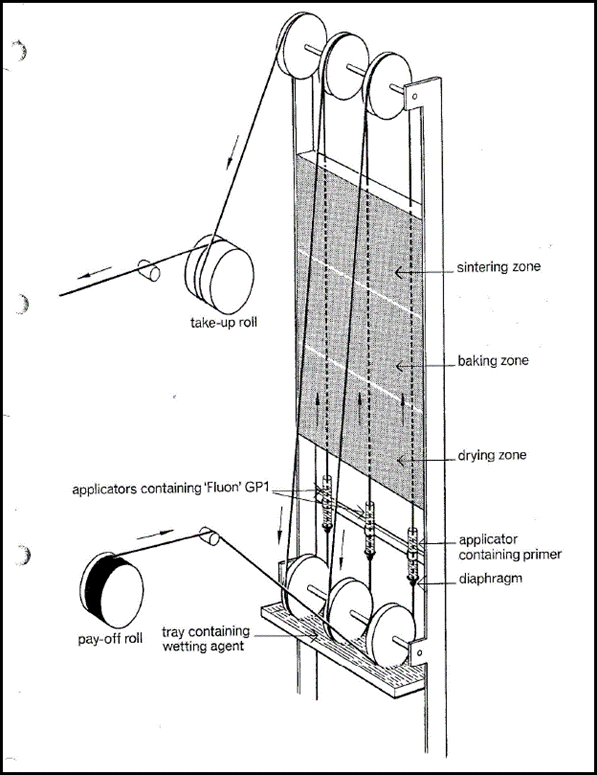

Vertical continuous-wire coating tower showing pay-off and take-up rolls, a wetting-agent tray, Fluon GP1 and primer applicators, an MWS unit, and separate drying, baking, and sintering zones
Updated continuous-wire tower illustration showing wetting, Fluon GP1 and primer application, and staged drying, baking, and sintering.
One-page overview

Get the MWS product summary.

Review the product purpose, use cases, material and order details in a one-page PDF.

Download brochure
MWS manufacturer

Quality credentials apply across the product line.

The manufacturer of MWS units holds ISO 9001, ISO 14001, and IATF 16949 credentials (formerly ISO/TS 16949).

FluoroEtch® process details are general background information. For etchant use and process conditions, refer to the etchant supplier’s current technical bulletin and safety data sheet.
